Firestone Coil-Rite: 4101 Front Kit
Manual Fill Kit - Air Compressor Sold Separately
See Compatible Air Accessories
PRODUCT NUMBER
W237604101
REPLACEMENT AIR SPRING
6102
PRODUCT NOTES
Maintain a smooth ride and a balanced load. Get Coil-Rite air springs for your Ford.
Available To Purchase Online
Where To Buy
Product Link
This page has been copied to your clipboard.
Details & Benefits
- Designed to work in temperatures between -40˚F (-40˚C) and 180˚F (82˚C)
- Easily control air pressure in the air springs for varying loads and conditions
- Spring performance can be altered as easily as inflating a tire
- Made of durable, elastic polyurethane
-
Fill kit
Manual
-
load capacity
1000lbs
-
installation
No Drill
-
in-bed hitch
Not Applicable
-
min. air pressure
10 PSI
-
max air pressure
60 PSI
-
install time
1 HOUR(s)
Air Accessory Systems
Vehicles Compatible with 4101
| FORD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E150 (1975-1991)
May require tail pipe modification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E250 Cutaway (2007-2008)
Commercial vehicle without factory bed
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E250 (1975-1991)
May require tail pipe modification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E250 (1998-2014)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E33 Class A Motorhome (1986-1996)
With front coil springs
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E350 Class C Motorhome/Cutaway (1975-2016)
Commercial vehicle without factory bed
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E350 (1975-1991)
May require tail pipe modification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E350 (1998-2014)
With single rear wheel
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
E450 Class C Motorhome/Cutaway (1996-2025)
Commercial vehicle without factory bed
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F250 (Over 8,500 GVWR) 2WD (1984-1998)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F250 (Over 8,500 GVWR) 2WD (1999-2004)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F250 (Under 8,500 GVWR) 2WD (1969-1996)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F250 2WD (2005-2007)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F250 2WD (2008-2010)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F250 2WD (2011-2016)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F350 Cab-Chassis 2WD (1999-2004)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F350 2WD (1970-1998)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F350 2WD (1999-2004)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F350 2WD (2008-2010)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F350 2WD (2011-2016)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
F450 2WD (2008-2016)
|

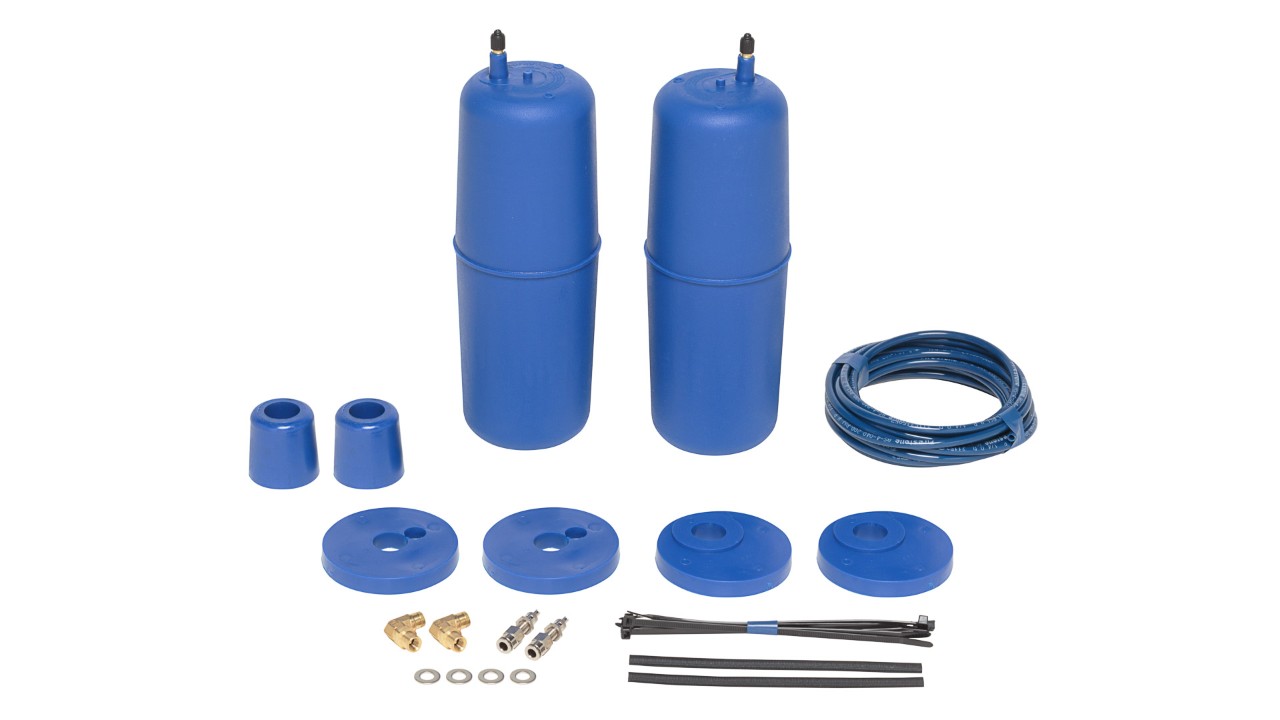

What's Included
Everything is included for a quick, easy installation.
- Air springs
- Hardware
- Air line and separate valves for manual inflation, the same as you would use for inflating a tire
Optional air accessories are available for all applications.
Additional Info
Difficult roads and challenging loads are a reality of life. Firestone Coil-Rite air springs put you in control of your Ford's response. Coil-Rite levels your Ford to help support better handling and braking, even when handling poor road conditions and heavy loads. As a result, Coil-Rite Ford air springs also help limit tire wear and keep headlight beams even.
Coil-Rite air springs are designed for vehicles with coil spring suspensions. They fit inside the existing coil springs to generate a variable spring rate. Variable spring rates lead to a slower spring rate in unloaded conditions and a higher spring rate in loaded conditions. What's the benefit? A gentler journey for everyone inside your Ford, and more responsive control when you're behind the wheel.
Is Firestone Coil-Rite installation easy? Of course! Ford Coil-Rite air spring kits come with all of the pieces necessary for a speedy, hassle-free installation. Most Firestone Coil-Rite kits are no-drill, with install times averaging one to two hours. Coil-Rite air springs are crafted out of durable, elastic polyurethane and fasten to your vehicle's current spring seats. Switches, gauges, air tanks, and air compressors can be purchased separately. The right air accessories make it easier for you to inflate or deflate your Ford air springs from the comfort of the driver's seat.
Once installed, your Coil-Rite air helper springs can be adjusted manually with individual inflation valves to support ride comfort and a centered load. Maintaining a balanced load lessens body roll to increase vehicle stability. Ford Coil-Rite air springs also help prevent bottoming out by cushioning the interaction between your vehicle's axles and frame and absorbing road shock.
Plus, shifting temperatures won't throw a wrench in your plans when you drive with Coil-Rite air springs. Firestone Coil-Rite air springs were made to function in temperatures between -40F (-40C) and 180F (82C). Head north, south, east, or west— drive your Ford where you want.
For your safety, remember that Ford Coil-Rite air springs will not increase your vehicle's weight-carrying capacity. Review your Ford owner's manual for vehicle-specific recommendations before hauling or towing any size load. Note that this Coil-Rite kit is not in-bed hitch compatible.
Head to your local Coil-Rite retailer or shop online and buy a Ford Firestone Coil-Rite air spring kit today.
