| PART # | DESCRIPTION | MOUNTING PLATE |
|---|---|---|
| 2900 | Single Path Analog Standard Duty | |
| 2910 | Dual Path Ananlog Standard Duty | |
| 2901 | Single Path Analog Heavy Duty | |
| 2911 | Dual Path Analog Heavy Duty | |
| 2902 | Single Path Analog Extreme Duty With Tank | |
| 2912 | Dual Path Analog Extreme Duty With Tank | |
| 2920 | Single Path Wireless (App Only) Standard Duty | |
| 2921 | Single Path Wireless (App Only) Heavy Duty | |
| 2930 | Dual Path Wireless (App Only) Standard Duty | |
| 2931 | Dual Path Wireless (App Only) Heavy Duty | |
| 2932 | Dual Path Wireless (App Only) Extreme Duty With Tank | |
| 2933 | Dual Path Wireless (Remote & App ) Standard Duty | |
| 2934 | Dual Path Wireless (Remote & App ) Heavy Duty | |
| 2935 | Dual Path Wireless (Remote & App ) Extreme Duty With Tank | |
| 2922 | Single Path Wireless (Remote & App) Standard Duty | |
| 2923 | Single Path Wireless (Remote & App ) Heavy Duty |
Firestone Coil-Rite: 4130 Rear Kit
Manual Fill Kit - Air Compressor Sold Separately
See Compatible Air Accessories
PRODUCT NUMBER
W237604130
REPLACEMENT AIR SPRING
6134
PRODUCT NOTES
Designed for trucks with coil spring suspensions. Coil-Rite air springs level your RAM 1500 and improve road handling.
Available To Purchase Online
Where To Buy
Product Link
This page has been copied to your clipboard.
Details & Benefits
- Designed to work in temperatures between -40˚F (-40˚C) and 180˚F (82˚C)
- Easily control air pressure in the air springs for varying loads and conditions
- Spring performance can be altered as easily as inflating a tire
- Made of durable, elastic polyurethane
-
Fill kit
Manual
-
load capacity
2000lbs
-
installation
No Drill
-
in-bed hitch
Compatible
-
min. air pressure
5 PSI
-
max air pressure
70 PSI
-
install time
2.5 HOUR(s)
Air Accessory Systems
Vehicles Compatible with 4130
| RAM | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1500 2WD, 4WD (2019-2024)
2WD Not Power RAM or Rebel.4WD Not Power RAM or Rebel.
|

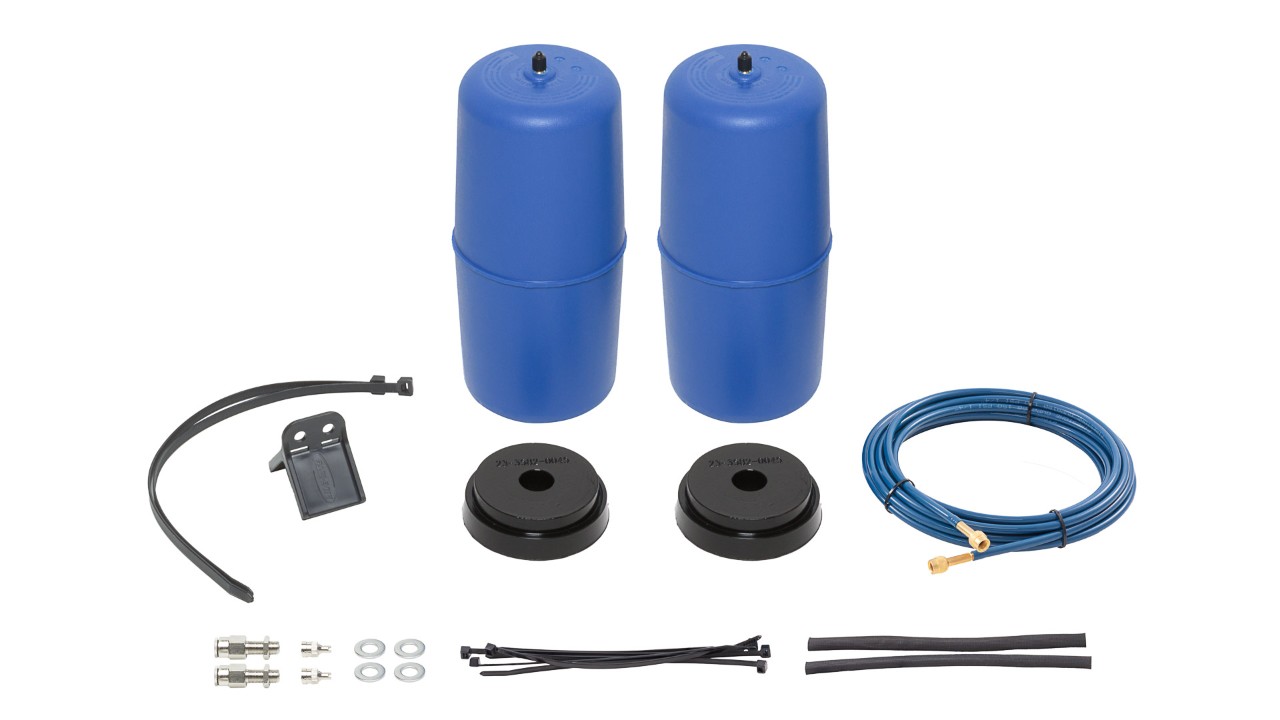

What's Included
Everything is included for a quick, easy installation.
- Air springs
- Hardware
- Air line and separate valves for manual inflation, the same as you would use for inflating a tire
Optional air accessories are available for all applications.
Additional Info
There's no such thing as a perfect load or perfect road conditions. Firestone Coil-Rite air springs put you in control of your truck's response. Coil-Rite balances your RAM 1500 to contribute to better braking and handling, even when handling poor road conditions and heavy loads. As a result, Coil-Rite air springs also help level headlight beams and promote even tire wear.
Coil-Rite air springs are designed for trucks with coil spring suspensions. They sit within the existing coil springs to generate a variable spring rate. A variable spring rate allows for a higher spring rate in loaded conditions and a slower spring rate in unloaded conditions. What's the benefit? A better ride for all those inside your RAM, and more support and control while you drive.
Is it easy to install Firestone Coil-Rite in a RAM 1500? You bet. Your RAM 1500 Coil-Rite air spring kit contains all of the pieces necessary for a quick, simple installation. Install time averages one to two hours, and most Firestone Coil-Rite kits are no-drill. Coil-Rite air helper springs are manufactured out of elastic polyurethane and attach to your RAM 1500's existing spring seats. Note that switches, gauges, air compressors, and air tanks are not included. Purchase the right air accessories for your RAM 1500 to inflate and deflate your truck air springs from the comfort of your cab.
Once installed, RAM 1500 Coil-Rite air bags adjust easily with individual inflation valves so you can maintain even load distribution and ride comfort. Maintaining a balanced load lessens body roll to enhance vehicle stability. By softening the interaction between your RAM's frame and axles and absorbing road shock, Coil-Rite air springs also help prevent bottoming out.
And with Coil-Rite air springs, you don't have to worry about shifting seasons standing in your way of a job well done. Coil-Rite air helper springs are designed to continue performing in temperatures between -40F (-40C) and 180F (82C). Head north, south, east, or west— drive your RAM 1500 where you want.
Firestone Coil-Rite air springs support 500 - 2,100 lbs. per set but do not change your truck's overall weight-carrying capacity. Check RAM's recommended weight limit before towing or hauling any load.
Find an authorized Coil-Rite retailer near you and buy a RAM 1500 Firestone Coil-Rite air spring kit today.
