| PART # | DESCRIPTION | MOUNTING PLATE |
|---|---|---|
| 2900 | Single Path Analog Standard Duty | Included |
| 2910 | Dual Path Ananlog Standard Duty | Included |
| 2901 | Single Path Analog Heavy Duty | Included |
| 2911 | Dual Path Analog Heavy Duty | Included |
| 2902 | Single Path Analog Extreme Duty With Tank | Included |
| 2912 | Dual Path Analog Extreme Duty With Tank | Included |
| 2920 | Single Path Wireless (App Only) Standard Duty | Included |
| 2921 | Single Path Wireless (App Only) Heavy Duty | Included |
| 2930 | Dual Path Wireless (App Only) Standard Duty | Included |
| 2931 | Dual Path Wireless (App Only) Heavy Duty | Included |
| 2932 | Dual Path Wireless (App Only) Extreme Duty With Tank | Included |
| 2933 | Dual Path Wireless (Remote & App ) Standard Duty | Included |
| 2934 | Dual Path Wireless (Remote & App ) Heavy Duty | Included |
| 2935 | Dual Path Wireless (Remote & App ) Extreme Duty With Tank | Included |
| 2922 | Single Path Wireless (Remote & App) Standard Duty | Included |
| 2923 | Single Path Wireless (Remote & App ) Heavy Duty | Included |
Firestone Coil-Rite: 4193 Front Kit
Manual Fill Kit - Air Compressor Sold Separately
See Compatible Air Accessories
PRODUCT NUMBER
W237604193
REPLACEMENT AIR SPRING
6103
PRODUCT NOTES
Designed for pickup trucks with coil spring suspensions. Coil-Rite air springs level your Dodge RAM 2500/3500 and improve road handling.
Available To Purchase Online
Where To Buy
Product Link
This page has been copied to your clipboard.
Details & Benefits
- Designed to work in temperatures between -40˚F (-40˚C) and 180˚F (82˚C)
- Easily control air pressure in the air springs for varying loads and conditions
- Spring performance can be altered as easily as inflating a tire
- Made of durable, elastic polyurethane
-
Fill kit
Manual
-
load capacity
1000lbs
-
installation
No Drill
-
in-bed hitch
Not Applicable
-
min. air pressure
5 PSI
-
max air pressure
35 PSI
-
install time
1 HOUR(s)
Air Accessory Systems
Vehicles Compatible with 4193
| RAM | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2500 4WD, 2WD (2014-2018)
|
||||||||||||
|
3500 4WD, 2WD (2014-2018)
4WD Not factory air assist2WD Not factory air assist
|
||||||||||||
|
3500 4WD (2013-2018)
4WD Not factory air assist
|

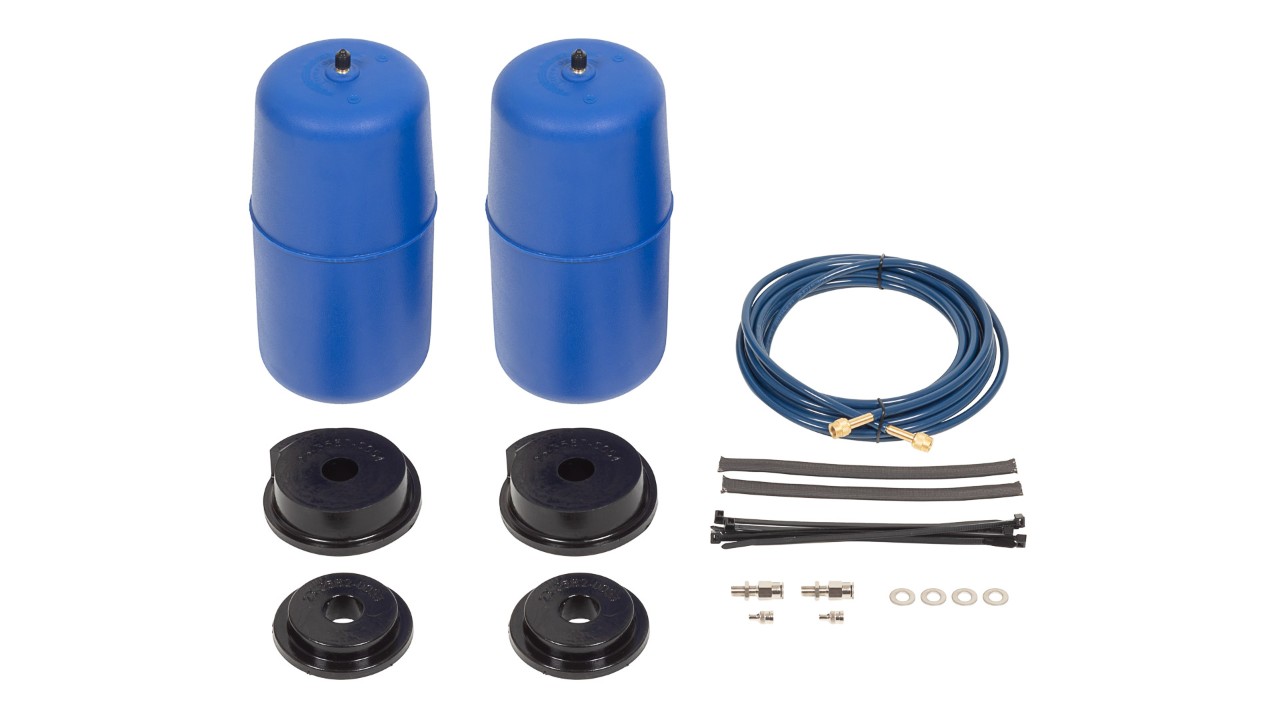

What's Included
Everything is included for a quick, easy installation.
- Air springs
- Hardware
- Air line and separate valves for manual inflation, the same as you would use for inflating a tire
Optional air accessories are available for all applications.
Additional Info
Loads change and shift, and so should your reaction to them. That's why Firestone makes Coil-Rite air springs. Coil-Rite levels your Dodge RAM 2500/3500 to encourage more effective braking and handling, even when hauling a heavy load or dealing with adverse road conditions. In turn, Coil-Rite air springs also help limit tire wear and keep headlight beams even.
Coil-Rite air helper springs are made for pickup trucks with coil spring suspensions. They sit inside your current coil springs to create a variable spring rate. A variable spring rate allows for a higher spring rate in loaded conditions and a slower spring rate in unloaded conditions. The result? A more enjoyable ride for everyone inside your pickup truck, and more support and control as you add miles to the odometer.
Is Firestone Coil-Rite installation pretty straightforward? You bet. Your Dodge RAM 2500/3500 Coil-Rite air spring kit includes all the necessary parts for a quick, hassle-free installation. Install time averages one to two hours, and most Firestone Coil-Rite kits are no-drill. Coil-Rite air springs are crafted out of durable, elastic polyurethane and connect to your Dodge RAM 2500/3500's current spring seats. Air compressors, air tanks, gauges, and switches are sold separately. Purchase the right air accessories for your Dodge RAM 2500/3500 to inflate and deflate your pickup truck air springs from the comfort of your cab.
Once installed, Dodge RAM 2500/3500 Coil-Rite air bags adjust easily with individual inflation valves so you can maintain a smooth ride and balanced load distribution. A balanced load diminishes body roll to promote overall vehicle stability. By absorbing road shock and softening the interaction between your pickup's axles and frame, Coil-Rite air springs help prevent bottoming out.
With Coil-Rite air springs, changing seasons won't block you from hauling what you need to haul. Coil-Rite air springs were designed to work in temperatures between -40F (-40C) and 180F (82C). Summer or winter, north or south— take your Dodge RAM 2500/3500 where you want to go.
Dodge RAM 2500/3500 Coil-Rite air springs support 500 - 2,100 lbs. per set but will not increase your truck's weight-carrying capacity. Check Dodge's recommended weight limit before towing or hauling any load.
Find an authorized Coil-Rite retailer near you and buy a Dodge RAM 2500/3500 Firestone Coil-Rite air spring kit today.
