| PART # | DESCRIPTION | MOUNTING PLATE |
|---|---|---|
| 2901 | Single Path Analog Heavy Duty | Included |
| 2911 | Dual Path Analog Heavy Duty | Included |
| 2902 | Single Path Analog Extreme Duty With Tank | Included |
| 2912 | Dual Path Analog Extreme Duty With Tank | Included |
| 2921 | Single Path Wireless (App Only) Heavy Duty | Included |
| 2931 | Dual Path Wireless (App Only) Heavy Duty | Included |
| 2932 | Dual Path Wireless (App Only) Extreme Duty With Tank | Included |
| 2934 | Dual Path Wireless (Remote & App ) Heavy Duty | Included |
| 2935 | Dual Path Wireless (Remote & App ) Extreme Duty With Tank | Included |
| 2923 | Single Path Wireless (Remote & App ) Heavy Duty | Included |
Firestone RED Label: 2701 Rear Kit
Manual Fill Kit - Air Compressor Sold Separately
See Compatible Air Accessories
PRODUCT NUMBER
W217602701
REPLACEMENT AIR SPRING
8401
PRODUCT NOTES
Our toughest line of light-duty aftermarket air springs. Made with commercial-grade materials.
Available To Purchase Online
Where To Buy
Product Link
This page has been copied to your clipboard.
Details & Benefits
- High strength steel alloy brackets, commercial grade bellows and grade 8 fasteners, and enhanced bracket coating technology
- Designed to work in parallel with in-bed hitches
- No drill design
-
Fill kit
Manual
-
load capacity
7500lbs
-
installation
No Drill
-
in-bed hitch
Compatible
-
min. air pressure
5 PSI
-
max air pressure
150 PSI
-
install time
1.5 HOUR(s)
Air Accessory Systems
Vehicles Compatible with 2701
| DODGE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAM 2500 2WD, 4WD (2003-2009)
|
||||||||||||||
|
RAM 3500 2WD, 4WD (2003-2009)
|
| RAM | ||||||
|---|---|---|---|---|---|---|
|
2500 2WD, 4WD (2010-2012)
|
||||||
|
2500 2WD, 4WD (2013-2013)
|
||||||
|
3500 4WD, 2WD (2010-2012)
|

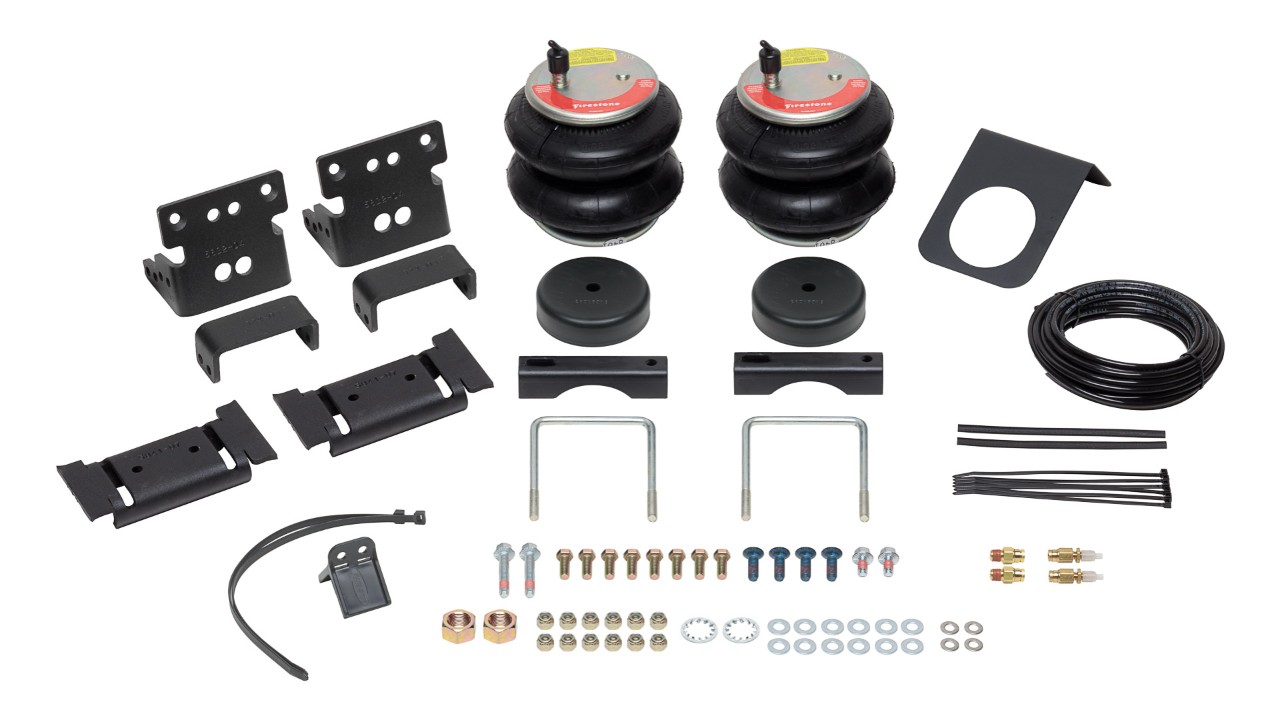

What's Included
Everything is included for a quick, easy installation.
- Firestone RED Label air springs
- Installation brackets
- Easy install guide
- Warranty information
- All hardware needed for install
Additional Info
Take on a challenging load. You can do it. Firestone RED Label Extreme Duty air springs for Dodge RAMs are engineered with commercial-level materials to endure the most taxing jobs. When you're pulling a heavy trailer or awkward load, you need air bags you can rely on for a smooth ride and solid road safety. You want the benefits that come with a RED Label Kit.
Why does the kit work? Dodge RAM Firestone RED Label Kits use a pair of convoluted air springs to raise your pickup truck back up to the manufacturer's height while hauling or towing a heavy load. Air pressure can be adjusted manually to account for unbalanced loads.
No drilling is required and the installation process is straightforward. RED Label air helper springs are installed in the rear of your pickup truck, between the frame and the suspension. Install time averages 1.5 hours. Each kit includes everything you need, including Dodge RAM Firestone RED Label air springs, necessary hardware, brackets, install manual, and warranty info. Compressors, air tanks, control panels, gauges, and switches can be purchased separately.
Why go with RED Label for Dodge RAM air springs? Because getting there shouldn't be the wildest ride. RED Label air springs use grade 8 fasteners, high strength steel alloy brackets, and an enhanced coating to safeguard against environmental aggressors like corrosive de-icing agents and road salt. The springs are made from the same rubber that's used in our Airide™ commercial air springs—four layers of it. What's more, Dodge RAM RED Label kits can level loads up to 6500 and handle up to 150 PSI.
Find an authorized RED Label retailer near you to buy your Dodge RAM RED Label Extreme Duty Air Spring Kit.
