| PART # | DESCRIPTION | MOUNTING PLATE |
|---|---|---|
| 2901 | Single Path Analog Heavy Duty | Included |
| 2911 | Dual Path Analog Heavy Duty | Included |
| 2902 | Single Path Analog Extreme Duty With Tank | Included |
| 2912 | Dual Path Analog Extreme Duty With Tank | Included |
| 2921 | Single Path Wireless (App Only) Heavy Duty | Included |
| 2931 | Dual Path Wireless (App Only) Heavy Duty | Included |
| 2932 | Dual Path Wireless (App Only) Extreme Duty With Tank | Included |
| 2934 | Dual Path Wireless (Remote & App ) Heavy Duty | Included |
| 2935 | Dual Path Wireless (Remote & App ) Extreme Duty With Tank | Included |
| 2923 | Single Path Wireless (Remote & App ) Heavy Duty | Included |
Firestone RED Label: 2703 Rear Kit
Manual Fill Kit - Air Compressor Sold Separately
See Compatible Air Accessories
PRODUCT NUMBER
W217602703
REPLACEMENT AIR SPRING
8401
PRODUCT NOTES
Built to extreme specifications, so you can demand more from your Ford F250/350/450.
Available To Purchase Online
Where To Buy
Product Link
This page has been copied to your clipboard.
Details & Benefits
- High strength steel alloy brackets, commercial grade bellows and grade 8 fasteners, and enhanced bracket coating technology
- Designed to work in parallel with in-bed hitches
- No drill design
-
Fill kit
Manual
-
load capacity
7500lbs
-
installation
No Drill
-
in-bed hitch
Compatible
-
min. air pressure
5 PSI
-
max air pressure
150 PSI
-
install time
1.5 HOUR(s)
Air Accessory Systems
Vehicles Compatible with 2703
| FORD | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F250 4WD, 2WD (2011-2016)
|
||||||||||||
|
F350 4WD, 2WD (2011-2016)
|
||||||||||||
|
F450 4WD, 2WD (2011-2013)
|

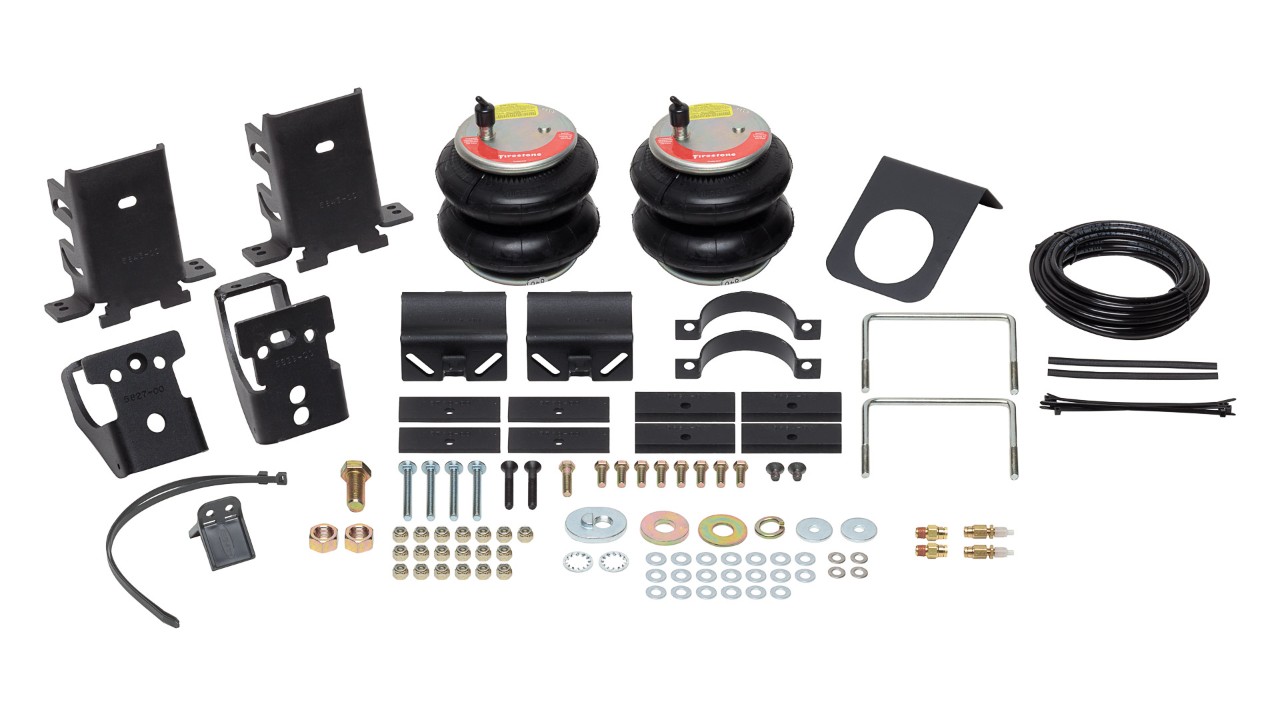

What's Included
Everything is included for a quick, easy installation.
- Firestone RED Label air springs
- Installation brackets
- Easy install guide
- Warranty information
- All hardware needed for install
Additional Info
Difficult loads and challenging loads demand RED Label Kits. Firestone RED Label Extreme Duty air springs for Ford F250/350/450s are engineered with commercial-level materials to withstand the hardest applications. When you're towing a heavy trailer or hauling a heavy load, you need air bags you count on for road safety and an undeniably smooth ride. You need a Firestone RED Label Kit.
Why does the kit work? Ford Ford F250/350/450 Firestone RED Label Kits utilize a pair of convoluted air springs to lift your pickup back to Ford's recommended height while towing or hauling a heavy load. Air pressure can be adjusted manually to account for unbalanced loads.
No drilling is required and the installation process is straightforward. RED Label Ford Ford F250/350/450 air helper springs fit between your frame and suspension, and work with your existing rear suspension system. Installation takes between one and two hours. Your kit comes with all materials, including Ford Ford F250/350/450 Firestone RED Label air springs, brackets, necessary hardware, warranty information, and install guide. Air tanks, compressors, control panels, switches, and gauges are sold separately.
Why choose Firestone RED Label for your Ford Ford F250/350/450 air springs? Because your pickup needs commercial-grade durability. RED Label air helper springs use steel alloy brackets, grade 8 fasteners, and enhanced coating technology to protect against damaging agents like corrosive road salt and de-icing chemicals. The springs feature four layers of reinforced rubber—the same rubber used in our commercial line of air springs. Plus, Ford Ford F250/350/450 RED Label kits can handle up to 150 PSI and level loads up to 6500.
Locate a RED Label retailer near you today to purchase your Ford Ford F250/350/450 RED Label Extreme Duty Air Spring Kit.
